Animations

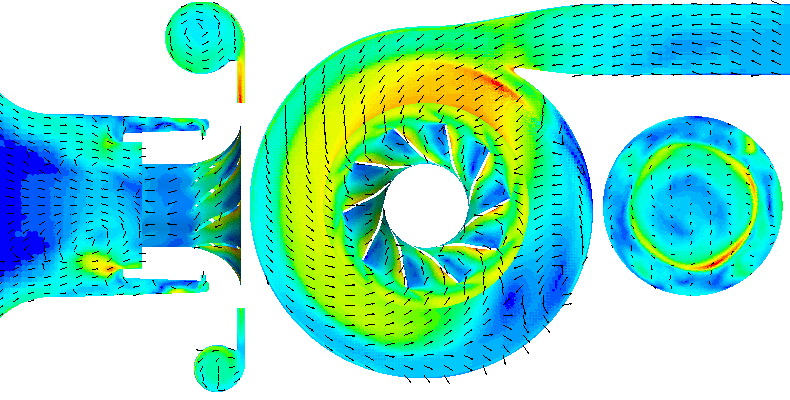

Annimated compressor flow field at surge.

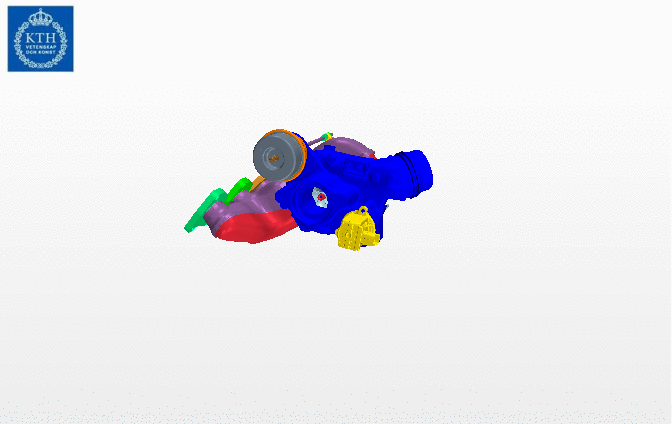

BorgWarner turbocharger with animated streamlines in the compressor colored by velocity magnitude. Flow field computed with steady-state RANS at design condition.

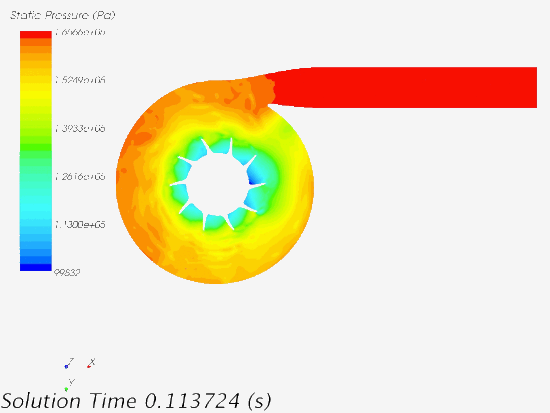

Animated pressure in to the diffuser and volute of the GT40 Turbocharger Compressor operating near by surge condition (Stall/Rotating stall) by LES approach

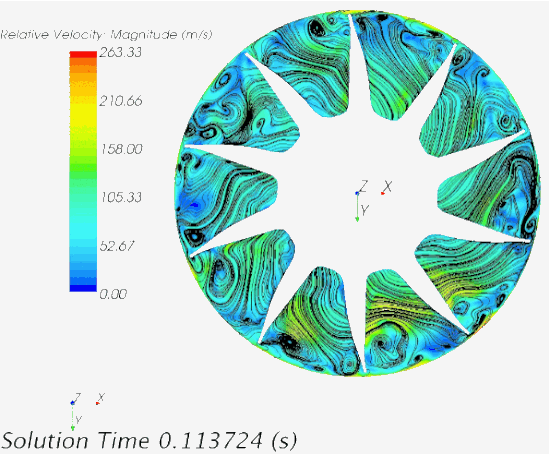

Animated Relative velocity within the impeller blade passage for the GT40 Turbocharger Compressor operating near by surge condition (Stall / Rotating stall) by LES approach

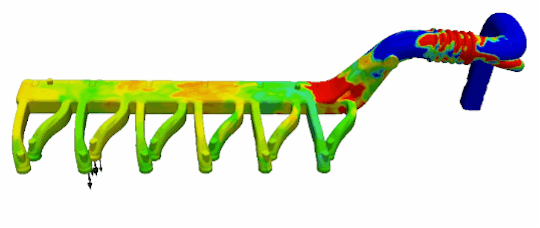

EGR concentration computed by LES on the inlet manifold of a Scania 6 cylinder Diesel eng
